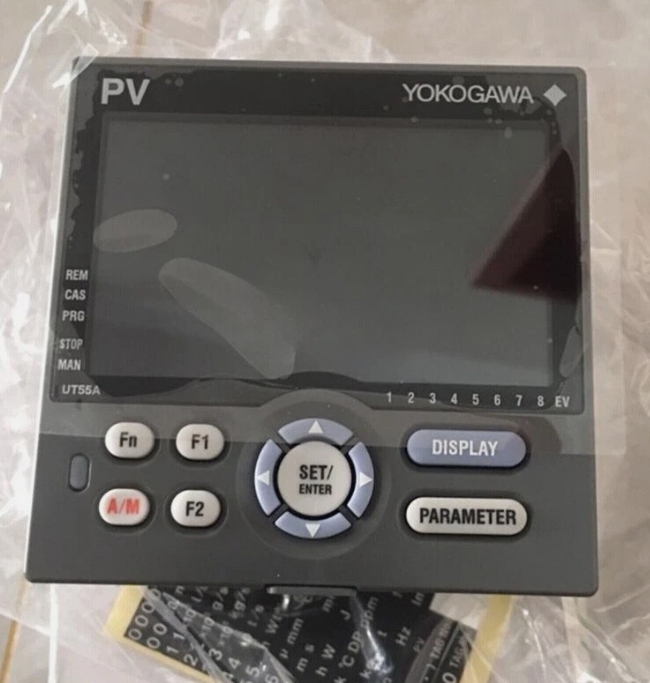

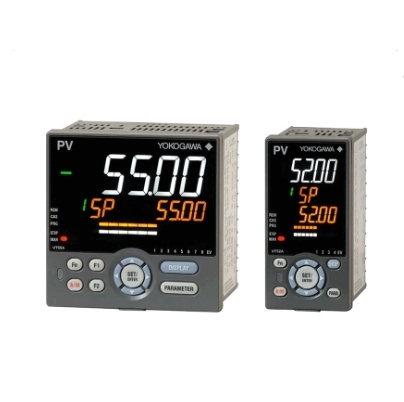

YOKOGAWA Temperatuurcontroleur voor het middenniveau UT55A/UT52A UT55A-001-11-00 Temperatuurcontroleur

Plaats van herkomst Zuid -Korea
Merknaam yokogawa
Certificering /
Modelnummer UT55A-001-11-00
Min. bestelaantal 1 st
Prijs USD 550/PC
Verpakking Details Originele verpakking
Levertijd 1-3 werkdagen
Betalingscondities T/T
Levering vermogen 1000 pc/maand
Productdetails
Markeren

Yokogawa UT55A temperatuurregelaar

,

temperatuurregelaar UT52A

,

programmabele temperatuurregelaar met garantie

Laat een bericht achter
Productomschrijving

Specificaties

Artikel 1 UT55A UT52A
PV-invoer Invoertype 1 Universele invoer (TC, RTD, mV, V, mA)
Genoegkeurigheid van de indicatie ± 0,1% van F.S.
Controle-scanperiode 50, 100, 200 msec
PV/SP-gegevens weergeven 14 segmenten, 5 cijfers, bargrafiek LCD-display
Beheersuitgangen (MV) Type Relais, spanningspuls, stroom
Algorithme ON/OFF, PID (continuous, time-proportional), Verwarming/koeling, positie-proportionele
Digitale ingangen Aantal 3 (Std) 9 (Max) 3 (Std) 5 (Max)
Type SP-nummer, PID-nummer, A/M-wijziging, enz.
Digitale uitgangen Aantal 3 (Std) 18 (Max) 3 (Std) 5 (Max)
Functie PV hoog, PV laag, Dev hoog, enz.
Invoer van transstroom (optie) Aantal 2
Herzending Aantal 1
Type PV, SP, OUT, enz.
Verwijderde (aux.) invoer (optie) Aantal 1 of 3 1
Type 1 tot en met 5 V, enz.
Slechts 1 invoer kan worden gewijzigd in universele invoer wanneer de optie /DR is opgegeven
Loop stroomvoorziening (LPS) (optioneel) Aantal 1
Spanning 21.6 tot 28.0 VDC
Mededeling (optie) Aantal 1 of 2 1
Type RS-485, Ethernet, PROFIBUS-DP, CC-Link, DeviceNet RS-485, CC-Link
Andere specificaties Stroomvoorziening 100 tot 240 VAC (+10%, -15%) of 24 VAC/DC (+10%, -15%) (optioneel)
Energieverbruik Maximaal 18 VA Maximaal 15 VA
De massa Maximaal 0,5 kg

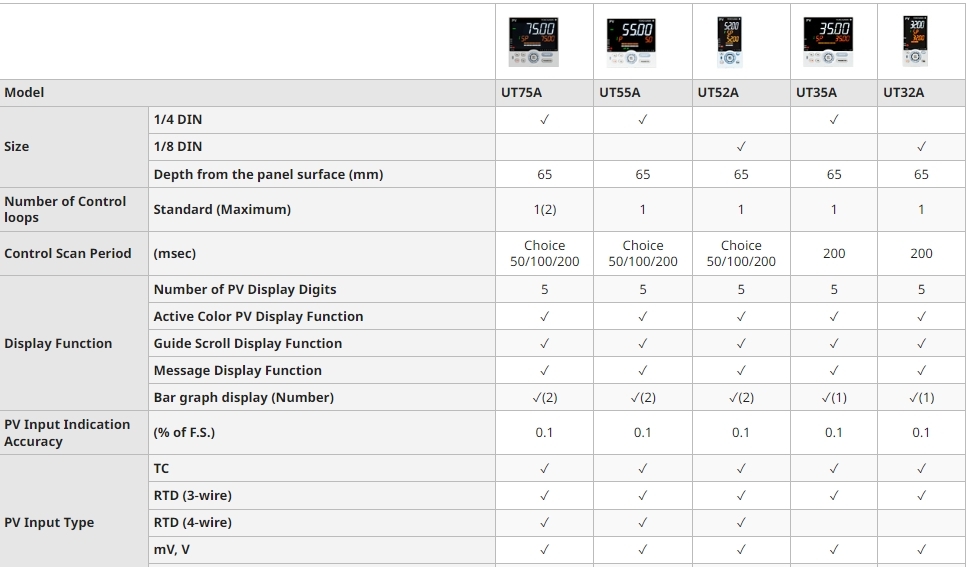

Vergelijkingsgrafiek (UT75A/UT55A/UT52A/UT35A/UT32A)

UT75A UT55A UT52A UT35A UT32A
Model UT75A UT55A UT52A UT35A UT32A
Grootte 1/4 DIN ✓ ✓ ✓
1/8 DIN ✓ ✓
Diepte van het paneeloppervlak (mm) 65 65 65 65 65
Aantal regellussen Standaard (maximaal) 1(2) 1 1 1 1
Controle-scanperiode (msec) Keuze 50/100/200 Keuze 50/100/200 Keuze 50/100/200 200 200
Toonfunctie Aantal PV-afbeeldingscijfers 5 5 5 5 5
Functie voor actief PV-display in kleur ✓ ✓ ✓ ✓ ✓
Gids scroll display functie ✓ ✓ ✓ ✓ ✓
Functie voor het weergeven van berichten ✓ ✓ ✓ ✓ ✓
Bargrafiek weergave (Aantal) ✓(2) ✓(2) ✓(2) ✓(1) ✓(1)
PV-invoerindicatie nauwkeurigheid (% van de F.S.) 0.1 0.1 0.1 0.1 0.1
PV-invoertype TC ✓ ✓ ✓ ✓ ✓
RTD (3-draad) ✓ ✓ ✓ ✓ ✓
RTD (4-draad) ✓ ✓ ✓
mV, V ✓ ✓ ✓ ✓ ✓
mA ✓ ✓ ✓ ✓ ✓
Aantal analoge ingangen Standaard (maximaal) 1 ((4) 1 ((4) 1(2) 1 1
Aantal SP (PID's) Maximaal 20(16) 8 8 4 4
Aantal besturingswijzen Maximaal 9 8 8 1 1
Aantal controletypen Maximaal 8 8 8 5 5
Beheersuitgang Type Relaiscontactuitgang, Spanningsimpulsuitgang, Stroomuitgang ✓ ✓ ✓ ✓ ✓
Algorithme Aan/uit ✓ ✓ ✓ ✓ ✓
PID (continuïteit, tijdsverhouding) ✓ ✓ ✓ ✓ ✓
Positie proportioneel ✓ ✓ ✓ ✓ ✓
Verwarming/koeling ✓ ✓ ✓ ✓ ✓
Aantal analoge uitgangen Standaard (maximaal) 2(3) 2(3) 2(3) 2 2
Aantal digitale ingangen Standaard (maximaal) 3(8) 3(9) 3(5) 2(7) 2(4)
Aantal alarmen 8 8 8 4 4
Aantal digitale uitgangen Standaard (maximaal) 3(8) 3(18) 3(5) 3(8) 3(5)
Communicatie RS-485-communicatie (maximaal) ✓(2) ✓(2) ✓(1) ✓(1) ✓(1)
Ethernet-communicatie ✓ ✓ ✓
Open netwerk (CC-Link/PROFIBUS-DP/DeviceNet) ✓ ✓ ✓
Verschillende functies Snel instellen functie ✓ ✓ ✓ ✓ ✓
Split Computation Output Functie ✓ ✓ ✓
Relatie en vierkantswortel-extractiefunctie ✓ ✓ ✓
Verwijderde SP-functie ✓ ✓ ✓
24 V gelijkstroomlustoevoerfunctie ✓ ✓ ✓ ✓
Alarmfunctie van de verwarming ✓
(Standaardtype)
✓
(Standaardtype)
✓
(Standaard
type of
Verwarming/
koelingstype)
✓
(Standaard
type of
Verwarming/
koelingstype)
Functie van de laddervolgorde (Maximaal aantal stappen) ✓(1000) ✓(500) ✓(500) ✓(300) ✓(300)
Andere specificaties Stroomvoorziening AC100 V tot 240 V ✓ ✓ ✓ ✓ ✓
AC/DC 24 V ✓ ✓ ✓ ✓ ✓
Stof- en waterdicht niveau voorpaneel NEMA4 *1 (IP66) NEMA4 *1 (IP66) NEMA4 *1 (IP66) NEMA4 *1 (IP66) NEMA4 *1 (IP66)
Configuratietool Via licht-laadcommunicatie ✓ ✓ ✓ ✓ ✓
Via onderhoudshaven
Communicatie
✓ ✓ ✓ ✓ ✓
Via RS-485/Ethernet
communicatie
✓/✓ ✓/✓ ✓/- ✓/✓ ✓/-
