Fisher Controls Valve Positioner Controller DVC6200PD Digital Valve Positioner Controller

Product Description:

Fisher Controls Valve Positioner Controller DVC6200PD

The Fisher DVC6200PD valve positioner controller delivers high-precision control for double-acting actuators in critical process environments. Built with a stainless steel enclosure and certified for hazardous areas, it integrates seamlessly into FOUNDATION Fieldbus-based control systems.

The high performance, linkage-less feedback system eliminates physical contact, which eliminates wearing on parts.
The fully encapsulated electronics resist the effects of vibration, temperature, and corrosive atmospheres.
Provides quick responsiveness to large step changes and precise control for small setpoint changes.
The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
When installed in an integrated control system, significant hardware and installation cost savings can be achieved.
The self-diagnostic capability provides valve performance and health evaluation.
Digital communication provides easy access to the condition of the valve.

Features:

• Product Name: Digital Valve Positioner Controller
• Model Numbers: DVC6200PD
• Compatible with Valve Positioner
• Mounting Bracket: Standard Angular Stroke Mounting Bracket
• Shipping Weight: 6 Kg
• Minimum Control Current: 4-20mA Feedback
• Single Package Size: 40X40X40 Cm
• Enclosure Material: Aluminum Diecasting or 316SS



Technical Parameters:

Product Name	Digital Valve Controllers
Product Type	Valve Positioner DVC6200
Enclosure Material	Aluminum Diecasting Or 316SS
Single Package Size	40X40X40 Cm
Shipping Weight	6 Kg
Protection Class	IP 67 / NEMA 4X
Mounting Bracket	Standard Angular Stroke Mounting Bracket
Operating Temperature	-25°C To +60°C
Minimum Control Current	4-20mA Feedback



Packing and Shipping:

Product Packaging and Shipping for Pneumatic Valve Positioner

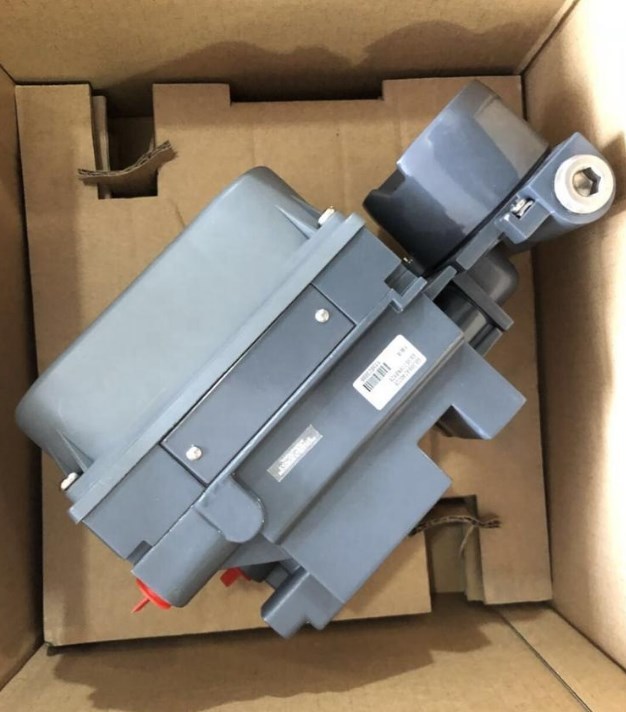

The Pneumatic Valve Positioner is carefully packaged to ensure safe delivery and optimal protection during transportation. Each unit is securely placed in a custom-molded foam insert within a sturdy, corrugated cardboard box. The packaging materials are designed to absorb shocks and prevent damage from vibrations or impacts.

Before packaging, the product undergoes thorough inspection and testing to guarantee functionality and quality. All accessories, installation manuals, and warranty cards are included in the package.

For shipping, the packaged Pneumatic Valve Positioner is labeled clearly with handling instructions such as "Fragile," "This Side Up," and "Keep Dry" to ensure proper care is taken during transit. Multiple units may be palletized and shrink-wrapped to provide stability and ease of handling.

We use reliable shipping carriers that specialize in handling industrial equipment to ensure timely and safe delivery to your location. Tracking information is provided to customers for monitoring the shipment status.

Upon receipt, customers are advised to inspect the packaging for any visible damage and report any issues immediately to facilitate prompt resolution.
