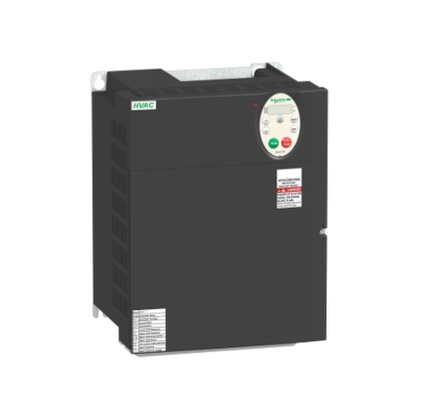

New Schneider ATV212HD15N4 Variable Speed Drive Altivar 212 with 15kW 20hp 480V 3-Phase EMC Filter
| Plaats van herkomst | Duitsland |
|---|---|
| Merknaam | Schneider |
| Modelnummer | ATV212HD15N4 |
| Min. bestelaantal | 1 |
| Prijs | USD＄619 |

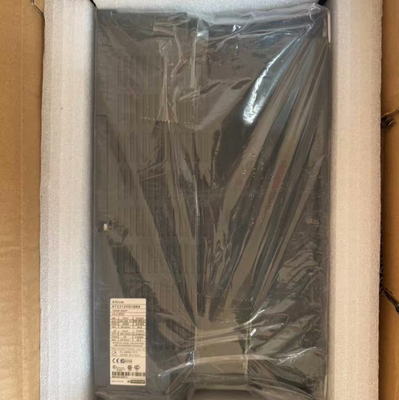

| Verpakking Details | originele verpakking |
| Levertijd | Op voorraad |
| Betalingscondities | L/C, D/A, D/P, T/T, Western Union |
| Levering vermogen | Kunststof, metaal |
Productdetails
| Markeren | Schneider ATV212 variable speed drive,Altivar 212 15kW drive,480V 3-phase Schneider drive |
||
|---|---|---|---|
Productomschrijving
| Device short name | ATV212 |
|---|---|
| Product destination | Asynchronous motors |
| Phase | 3 phase |
| Motor power kW | 15 kW |
| Maximum Horse Power Rating | 20 hp |
| Supply voltage limits | 323…528 V |
| Supply frequency | 50...60 Hz - 5...5 % |
| Line current | 22.8 A 480 V 28.5 A 380 V |
| Range of Product | Altivar 212 |
| Product or Component Type | Variable speed drive |
| Product Specific Application | Pumps and fans in HVAC |
| Communication Port Protocol | BACnet Modbus METASYS N2 APOGEE FLN LonWorks |
| [Us] rated supply voltage | 380...480 V - 15...10 % |
| EMC filter | Class C2 EMC filter integrated |
| IP degree of protection | IP21 |
| Apparent power | 23.2 kVA 380 V |
|---|---|
| Continuous output current | 30.5 A 380 V 30.5 A 460 V |
| Maximum transient current | 33.6 A 60 s |
| Speed drive output frequency | 0.5…200 Hz |
| Speed range | 1…10 |
| Speed accuracy | +/- 10 % of nominal slip 0.2 Tn to Tn |
| Local signalling | 1 LED (red) for DC bus energized |
| Output voltage | <= power supply voltage |
| Isolation | Electrical between power and control |
