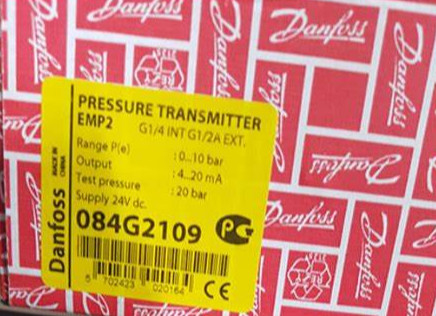

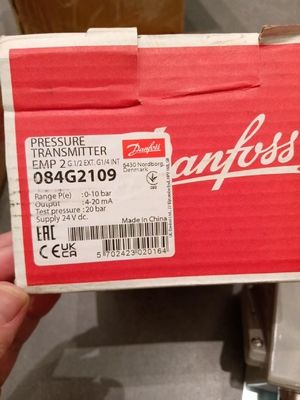

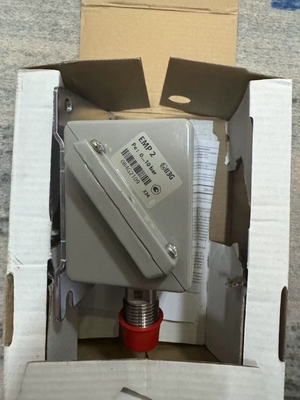

Dan-foss Precision Pressure Transmitter EMP 2, 084G2108 084G2109 084G2111 Original in Stock
| Place of Origin | Japan |
|---|---|
| Merknaam | Dandoss |
| Certificering | - |
| Model Number | 084G2109 |
| Minimum Order Quantity | 1 |
| Prijs | USD260/PC |
| Packaging Details | Original |
| Delivery Time | 1week |
| Payment Terms | L/C, D/A, D/P, Western Union, T/T, MoneyGram |
| Supply Ability | 1000 |
Contacteer me voor vrije steekproeven en coupons.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.
xProductdetails
| Merknaam | danfoss | Model Number | 084G2109 |
|---|---|---|---|
| Condition | new and original | Single gross weight | 1.5kg |
Productomschrijving
| + supply |
P
|
| - common |
N
|
| Accuracy, max. [±FS%] |
1.00 %
|
| Accuracy, typical [±FS%] |
0.5 %
|
| Approval |
ABS, BV, CCS, CE, DNV, GL, GOST POCC, KR, LR, NNK, RINA
|
| CE evaluated |
Yes
|
| China RoHS compliance |
Out of scope
|
| Compensated temp. range [°C] [max] |
70 °C
|
| Compensated temp. range [°C] [min] |
0 °C
|
| Compensated temp. range [°F] [max] |
158 °F
|
| Compensated temp. range [°F] [min] |
32 °F
|
| Contain batteries |
No
|
| DG Indicator Profile |
Not relevant for dangerous goods
|
| EU RoHS compliance |
Yes with exemptions
|
| EU RoHS exemption clause |
7(c)-I
|
| Electrical connection |
Terminal block
|
| Electrical connection size |
Pg 13.5
|
| Enclosure rating IP |
IP65
|
| Flush diaphragm |
No
|
| High Clipping Level |
22.40
|
| Intrinsically safe |
No
|
| Low Clipping level |
3.60
|
| Material Description |
Sensor EMP 2-1811-F6CD24-2
|
| Medium temperature range [°C] [max] |
70 °C
|
| Medium temperature range [°C] [min] |
-10 °C
|
| Medium temperature range [°F] [max] |
158 °F
|
| Medium temperature range [°F] [min] |
14 °F
|
| Non-linearity BFSL [±FS%] |
0.30 %
|
| Output signal |
Current
|
|
Characteristic
|
Value
|
|---|---|
| Output signal [mA] [max] |
20 mA
|
| Output signal [mA] [min] |
4 mA
|
| Overload pressure max. [bar] |
60.0 bar
|
| Packing format |
Multi pack
|
| Pressure Male/Female |
Male/Female
|
| Pressure connection notes |
EXT. G1/4 INT
|
| Pressure connection size |
1/2
|
| Pressure connection standard |
EN 228-1
|
| Pressure connection type |
G
|
| Pressure range [bar] [max] |
6.00 bar
|
| Pressure range [bar] [min] |
0.00 bar
|
| Pressure range [psi] [max] |
87.00 psi
|
| Pressure range [psi] [min] |
0.00 psi
|
| Pressure reference |
Gauge (relative)
|
| Product Type |
EMP 2
|
| Product group |
Sensors
|
| Product line |
Sensing Solutions
 |
