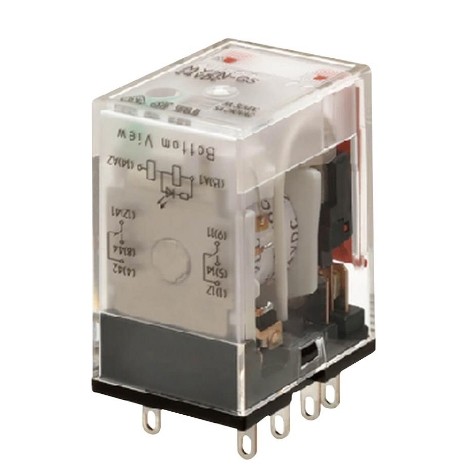

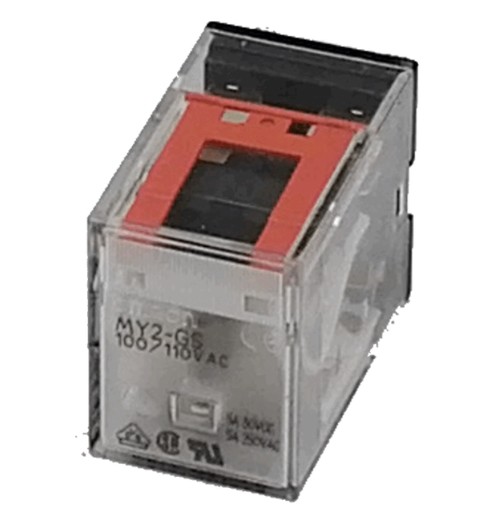

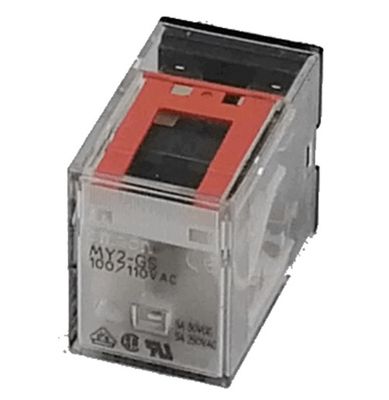

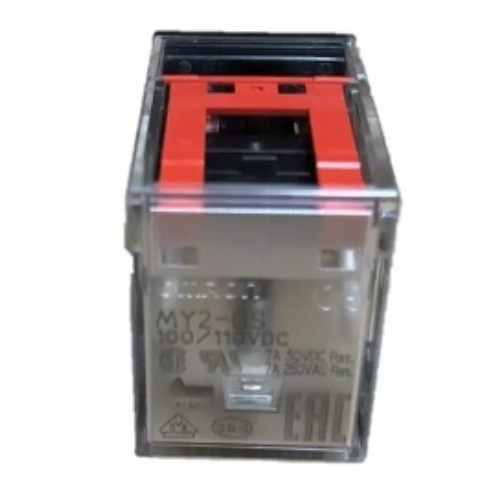

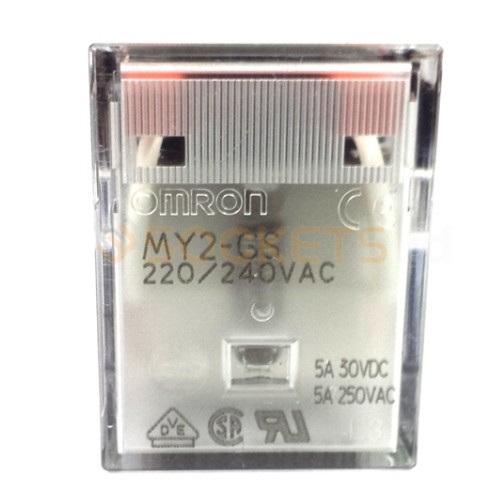

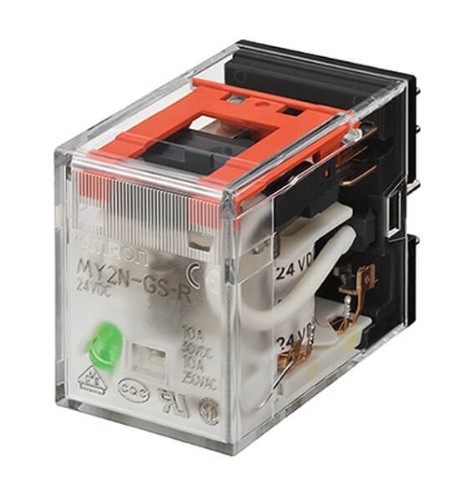

Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable

  • Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable
  • Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable
  • Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable
  • Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable
  • Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable
  • Omron MY2-GS General-Purpose Relay 24VDC Durable and Dependable
Place of Origin China
Merknaam Omron
Certificering CCC,CE
Model Number MY2-GS
Minimum Order Quantity 1
Prijs USD$15/pc
Packaging Details original
Delivery Time 5-8 work days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 1000pcs per month

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Power consumption Approx. 0.9 W Maximum voltage 110 % (23 ℃)
Coil resistance 662 Ω Coil ratings 24 VDC 36.3 mA
Laat een bericht achter
Productomschrijving
Ratings
Degree of protection Closed type (cover)
Terminal structure Plug-in terminal
Coil Coil ratings 24 VDC 36.3 mA
Coil resistance 662 Ω
Operate voltage (Set voltage) 80 % max.
Release voltage (Reset voltage) 10 % min.
Maximum voltage 110 % (23 ℃)
Power consumption Approx. 0.9 W
Contact Contact rated load 220 VAC 5 A (Resistive load)
220 VAC 2 A (Inductive load (cosφ = 0.4))
24 VDC 5 A (Resistive load)
24 VDC 2 A (Inductive load (L/R = 7 ms))
Max. contact voltage 250 VAC
125 VDC
Max. contact current AC: 5 A
DC: 5 A
Maximum switching power 1100 VA (Resistive load)
440 VA (Inductive load (cosφ = 0.4))
120 W (Resistive load)
48 W (Inductive load (L/R = 7 ms))
Contact form DPDT
Contact method Single
Contact material Ag
Performance
Contact resistance 50 mΩ max. (Voltage drop method with 5 VDC 1 A)
Operating time 20 ms max. (With rated operating power applied, not including contact bounce)
Reset time 20 ms max. (With rated operating power applied, not including contact bounce)
Maximum operating frequency Mechanical: 18000 time/hour
Rated load: 1800 time/hour
Insulation resistance Between coil and contacts: 100 MΩ min. (at 500 VDC)
Between contacts of different polarity: 100 MΩ min. (at 500 VDC)
Between contacts of same polarity: 100 MΩ min. (at 500 VDC)
Dielectric strength Between coil and contacts: 2000 VAC 50/60 Hz 1 min
Between contacts of different polarity: 2000 VAC 50/60 Hz 1 min
Between contacts of same polarity: 1000 VAC 50/60 Hz 1 min
Vibration resistance (destruction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Vibration resistance (Malfunction) 10 to 55 to 10 Hz, 0.5-mm single amplitude (1-mm double amplitude)
Shock resistance (destruction) 1000 m/s2
Shock resistance (Malfunction) 200 m/s2
Endurance (Mechanical) 100 million operations min. (switching frequency 18,000 operations/h)
Endurance (Electrical) 500,000 operations min. (23 ℃, Rated load, switching frequency 1,800 operations/h)
Failure rate 1 mA at 5 VDC (failure level: Preference value, Switching frequency: 120 operations per minute)
Ambient temperature (Operating) -55 to 70 ℃ (with no freezing or condensation)
Ambient humidity (Operating) 5 to 85 %
Weight Approx. 35 g
Mounting method Socket
Applicable socket PYF08S/ PYF08M/ PYF-08-PU/ PYF-08-PU-L/ PYFZ-08/ PYFZ-08-E/ PY08/ PY08-Y1/ PY08QN/ PY08QN2/ PY08QN-Y1/ PY08QN2-Y1/ PY08-02
