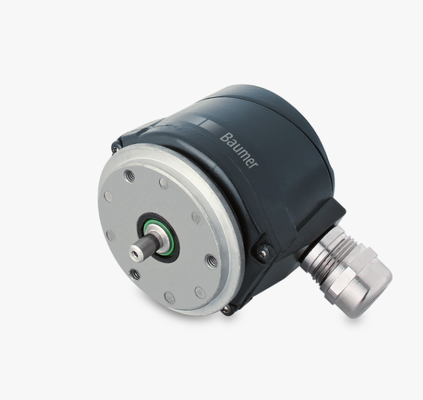

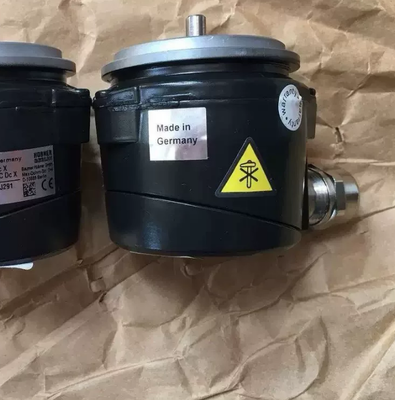

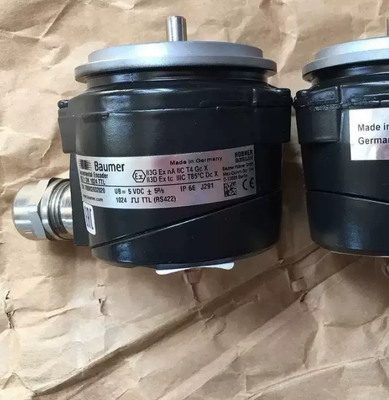

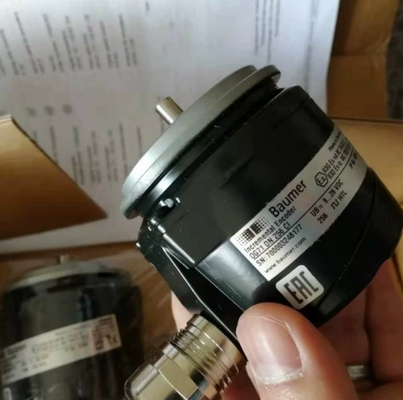

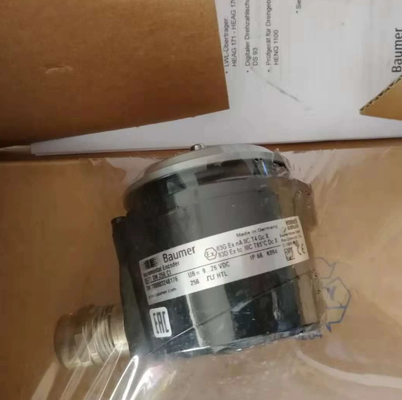

New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed

  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
Plaats van herkomst Duitsland
Merknaam BAUMER
Modelnummer BAUMER OG71
Min. bestelaantal 2
Prijs USD＄550
Verpakking Details originele verpakking
Levertijd Op voorraad
Betalingscondities L/C, D/A, D/P, T/T, Western Union
Levering vermogen Kunststof, metaal
Productdetails
Markeren

Baumer OG71 rotary encoder

,

incremental encoder with warranty

,

Baumer Hübner rotary encoder
Laat een bericht achter
Productomschrijving
Technical data - electrical ratings
Voltage supply
  • 9...26 VDC
  • 5 VDC ±5 %
Consumption w/o load
  • ≤100 mA
Pulses per revolution
  • 100 … 1024
Phase shift
  • 90 ° ±20°
Duty cycle
  • 40…60 %
Reference signal
  • Zero pulse, width 90°
Sensing method
  • Optical
Output frequency
  • ≤120 kHz
Output signals
  • A, B, C + inverted
Output stages
  • HTL
  • TTL/RS422
Interference immunity
  • EN 61000-6-2
Emitted interference
  • EN 61000-6-3
Approval
  • CE
  • UL approval / E217823
Technical data - mechanical design
Size (flange)
  • ø58 mm
Shaft type
  • ø6 mm solid shaft
Admitted shaft load
  • ≤30 N axial
  • ≤40 N radial
Flange
  • Synchro flange
Protection EN 60529
  • IP 66
Operating speed
  • ≤10000 rpm (mechanical)
Operating torque typ.
  • 1 Ncm
Rotor moment of inertia
  • 25 gcm²
Material
  • Housing: aluminium die-cast
  • Shaft: stainless steel
Operating temperature
  • -20...+85 °C
Resistance
  • IEC 60068-2-6
  • Vibration 10 g, 10-2000 Hz
  • IEC 60068-2-27
  • Shock 300 g, 6 ms
Explosion protection
  • II 3 G Ex ec IIC T4 Gc X (gas)
  • II 3 D Ex tc IIIC T85°C Dc X (dust)
  • (only with option ATEX)
Connection
  • Connecting terminal
Weight approx.
  • 300 g
