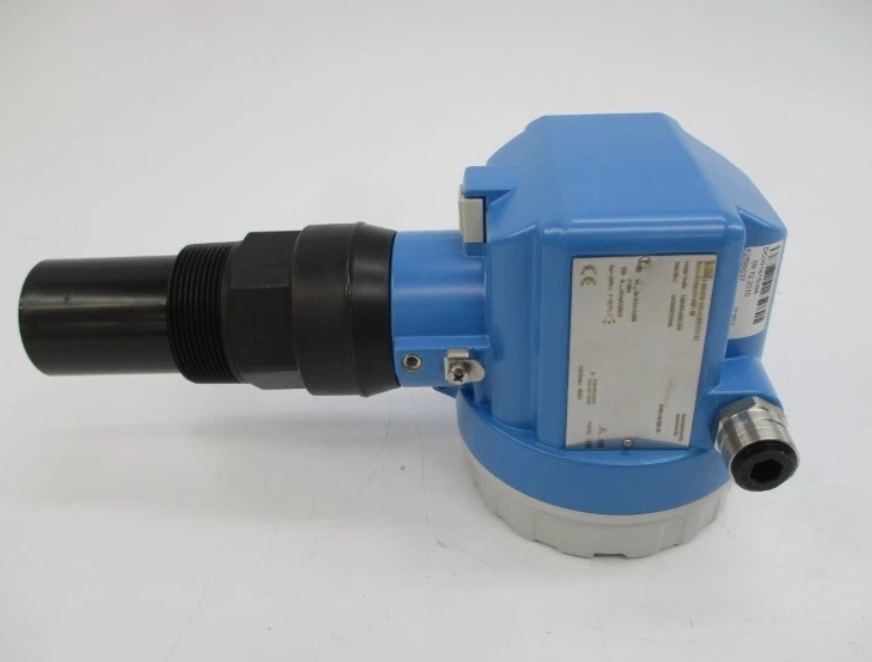

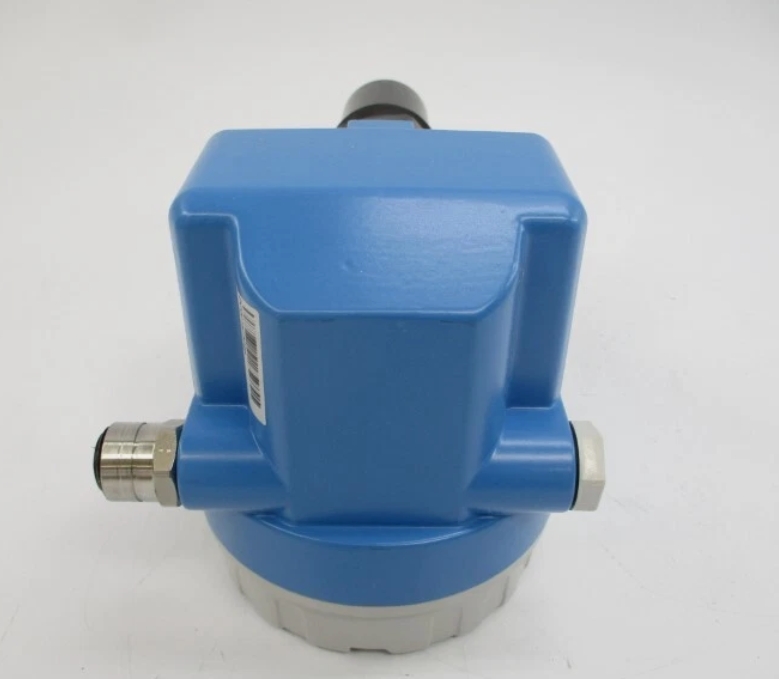

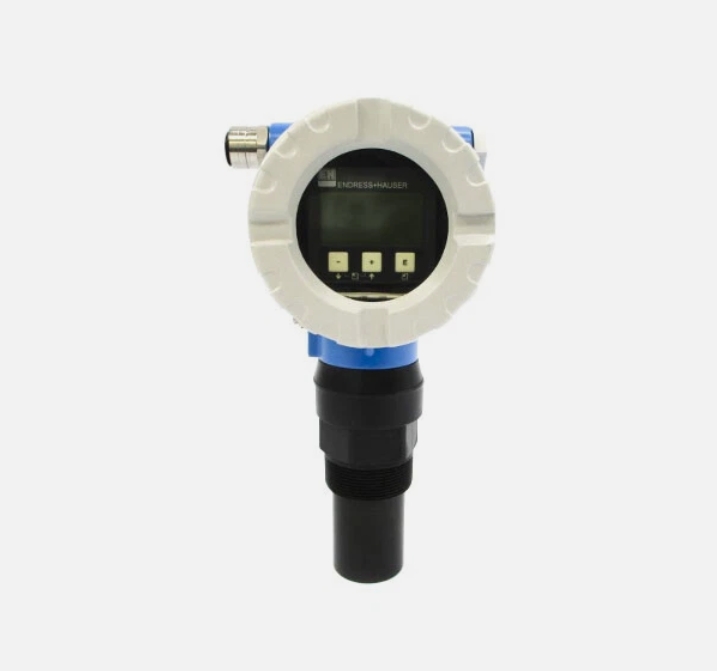

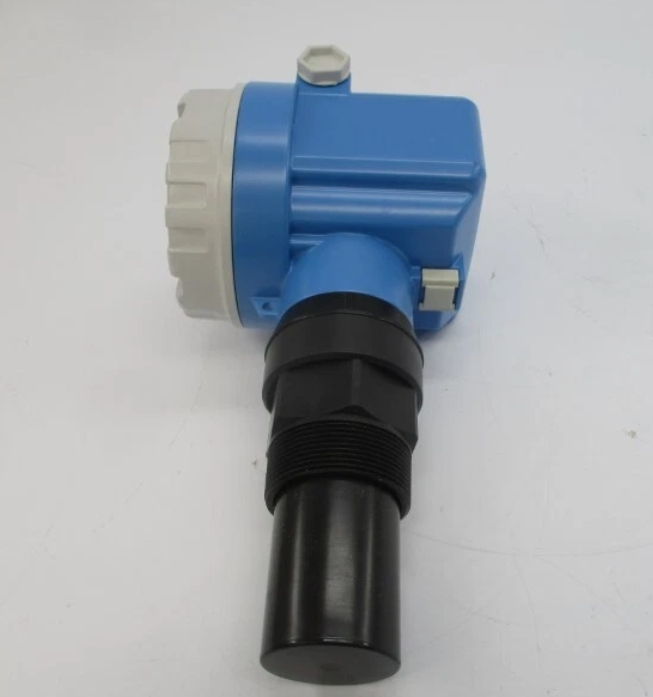

E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids

  • E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids
  • E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids
  • E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids
  • E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids
  • E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids
  • E+H Prosonic FMU41 Ultrasonic Level Sensor for Liquids and Solids
Place of Origin Germany
Merknaam E+H
Certificering /
Model Number FMU41-ANB2A4
Minimum Order Quantity 1pc
Prijs USD 820/PC
Packaging Details original packing
Delivery Time 5 working days
Payment Terms T/T
Supply Ability 1000pc/month

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Accuracy +/- 2 mm or +/- 0,2 % of set measuring range Process temperature -40 °C ... 80 °C (-40 °F ... 176 °F)
Process pressure / max. overpressure limit 0.7 bar ... 3 bar abs (10 psi ... 44 psi) Max. measurement distance Liquids: 8 m (26 ft), Solids: 3.5 m (11 ft)
Markeren

E+H Prosonic FMU41 ultrasonic sensor

,

ultrasonic level sensor for liquids

,

level sensor for solids with warranty
Laat een bericht achter
Productomschrijving

Field of application

The Prosonic FMU41 sensor is suited for non-contact level measurement in fluids, pastes, coarse bulk material and flow measurement in open channels or at weirs. The two-wire or four-wire compact transmitter can be used in applications with storage tanks, agitators, on stockpiles and conveyor belts. The envelope curve can be shown on the on-site display for simple diagnosis. Linearization function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate.

Two-wire or four wire instrument for continuous non-contact level and flow measurement.



  • Process connection: Thread

  • Temperature: -40 to +80°C (-40 to +176°F)

  • Pressure: +0.7 to +3bar (+10 to +44psi)

  • Maximum measuring distance: Liquids 8m (26ft), Solids 3.5m (11ft)

  • Blocking distance: Liquids and Solids 0.35m (1.15ft)

  • International explosion protection certificates

Benefits



  • Reliable non-contact measurement

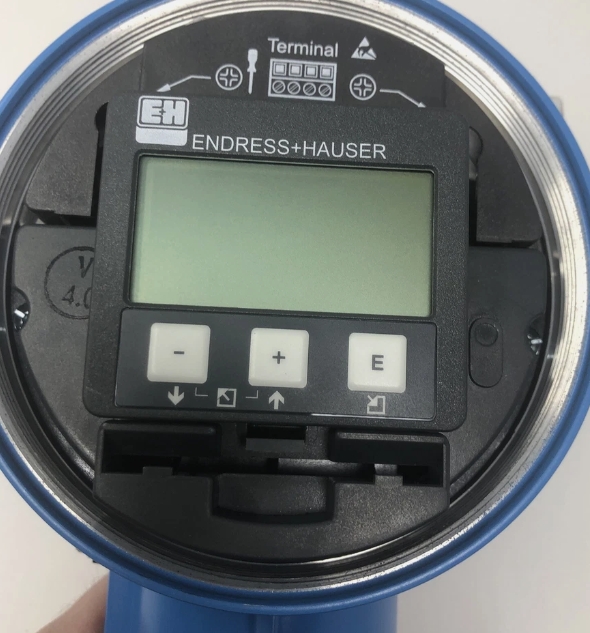

  • Quick and simple commissioning via menu-guided on-site operation with four-line plain text display, 7 languages selectable

  • Envelope curves on the on-site display for simple diagnosis

  • Hermetically sealed and potted sensor

  • Chemically resistant sensor out of PVDF

  • Calibration without filling or discharging

  • Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

  •
