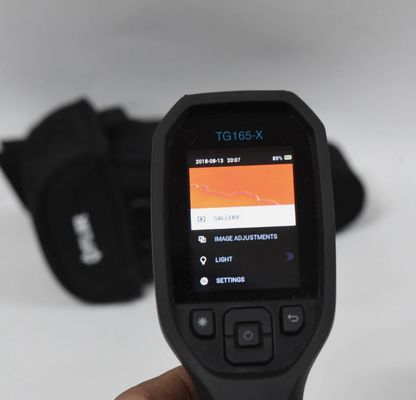

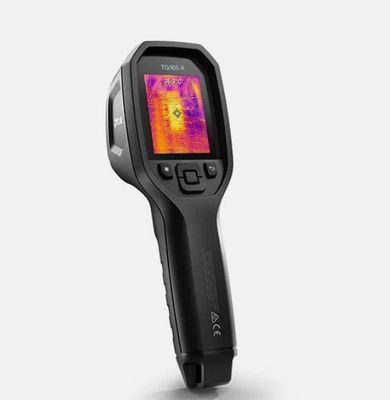

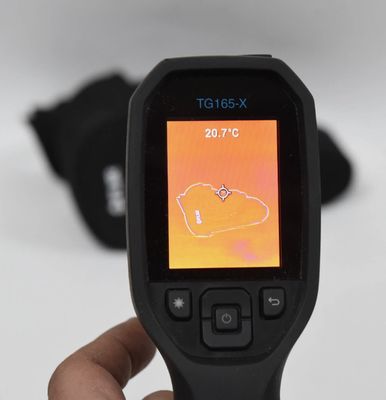

FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel

  • FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel
  • FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel
  • FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel
  • FLIR MSX TG165-X Thermal Imaging Camera -25°C ~ 300°C 80×60 Pixel
Plaats van herkomst CHINA
Merknaam flil
Certificering /
Modelnummer TG165-X
Min. bestelaantal 1 stc
Prijs USD 280/PC
Verpakking Details Originele verpakking
Levertijd 5 werkdagen
Betalingscondities T/t
Levering vermogen 1000 pc/maand

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
De resolutie 80 × 60 pixels Thermische gevoeligheid_NETD <70 mK
Gezichtsveld [FOV] 71° × 56° Detectorhoogte 17 µm
Display resolutie 320 × 240 pixels Moq 1 stc
Laat een bericht achter
Productomschrijving

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical break-downs, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, allowing you to inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.





Camera software update Using USB cable or SD card
Color palettes Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Detector Pitch 17 µm
Digital image enhancement No
Display resolution 320 × 240 pixels
Field of view [FOV] 71° × 56°, adapts to the IR lens
Focal Plane Array [FPA]_Spectral range Uncooled microbolometer/7.5–14 µm
Focus Fixed
Gallery Yes
Image Frequency 8.7 Hz
Image Modes MSX® (Multi Spectral Dynamic Imaging), visual
IR Resolution 80 × 60 pixels
Laser Class 1
Minimum Focus Distance 0.3 m (0.98 ft)
Minimum Measurement Distance 0.26 m (0.85 ft.)
Resolution 2 MP (1600 × 1200 pixels)
Thermal Sensitivity_NETD <70 mK
