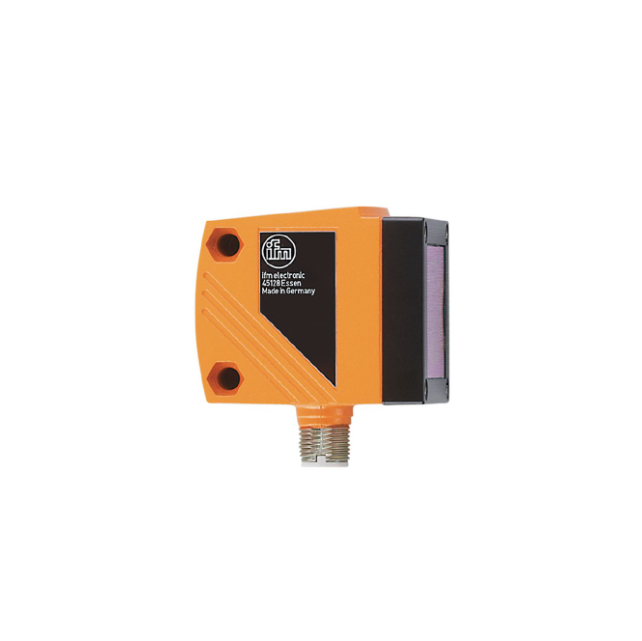

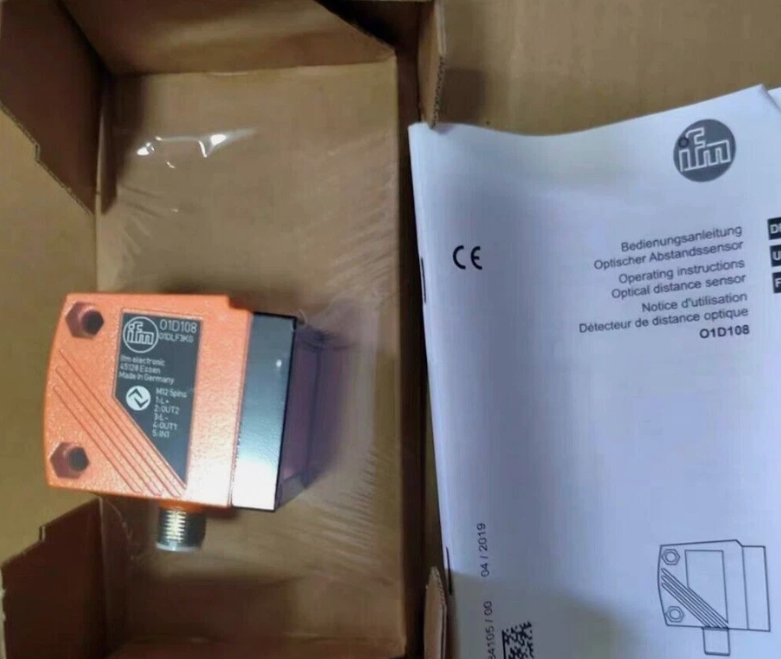

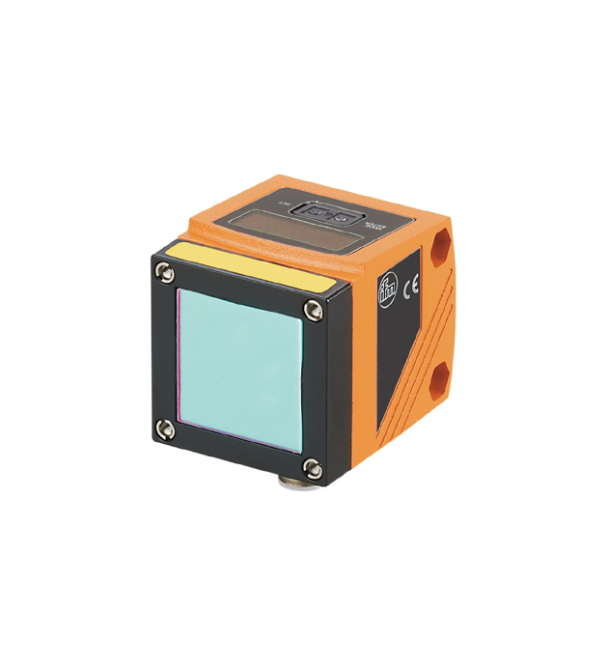

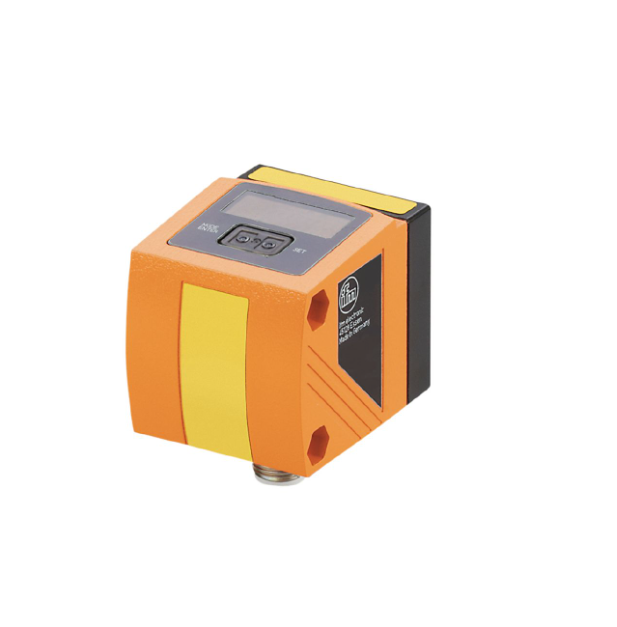

IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors

  • IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors
  • IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors
  • IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors
  • IFM O1D108 Photoelectric Distance Sensor O1DLF3KG/IO-LINK 01D108 Photoelectric sensors
Plaats van herkomst Duitsland
Merknaam IFM
Certificering /
Modelnummer O1D108
Min. bestelaantal 1 ST
Prijs USD $220/PC
Verpakking Details Originele verpakking
Levertijd 1-3 werkdagen
Betalingscondities T/T
Levering vermogen 1000 pc/maand

Contacteer me voor vrije steekproeven en coupons.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Als u om het even welke zorg hebt, verstrekken wij de online-Help van 24 uur.

x
Productdetails
Laserbeschermingsklasse 2 Huisvesting Rechthoekig
Toepassing[m] 0,2...100 Werkspanning[V] 18...30 gelijkstroom; (cULus - Klasse 2-bron vereist)
Stroomverbruik[mA] < 150
Laat een bericht achter
Productomschrijving

Product characteristics

Laser protection class 2
Housing rectangular

Application

Application[m] 0.2...100

Electrical data

Operating voltage[V] 18...30 DC; (cULus - Class 2 source required)
Current consumption[mA] < 150
Protection class III
Reverse polarity protection yes
Typ. lifetime[h] 50000

Inputs / outputs

Number of inputs and outputs Number of digital outputs: 2; Number of analog outputs: 1

Outputs

Total number of outputs 2
Electrical design PNP
Number of digital outputs 2
Output function normally open / closed; (programmable)
Max. current load per output[mA] 200
Number of analog outputs 1
Analog current output[mA] 4...20; (IEC 61131-2)
Max. load[Ω] 250
Analog voltage output[V] 0...10; (IEC 61131-2)
Min. load resistance[Ω] 5000
Short-circuit protection yes
Type of short-circuit protection yes (non-latching)
Overload protection yes

Monitoring range

Max. light spot width[mm] 25
Max. light spot height[mm] 25
Light spot dimensions refer to 18 m
Background suppression[m] < 100

Measuring/setting range

Measuring range[m] 0.2...18; (white paper 200 x 200 mm 90 % remission)
Sampling rate[Hz]

1...33
