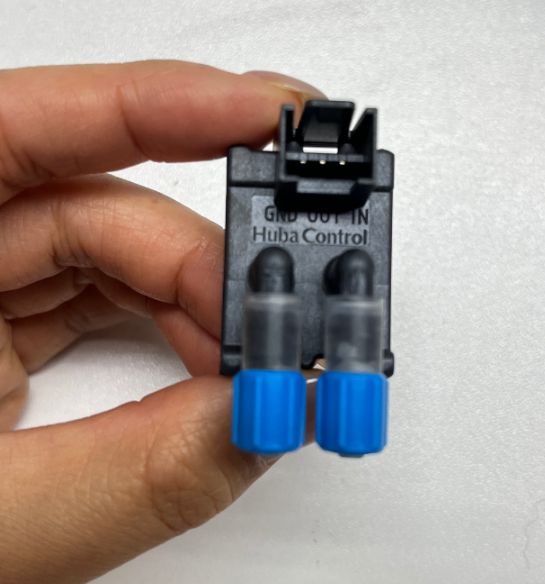

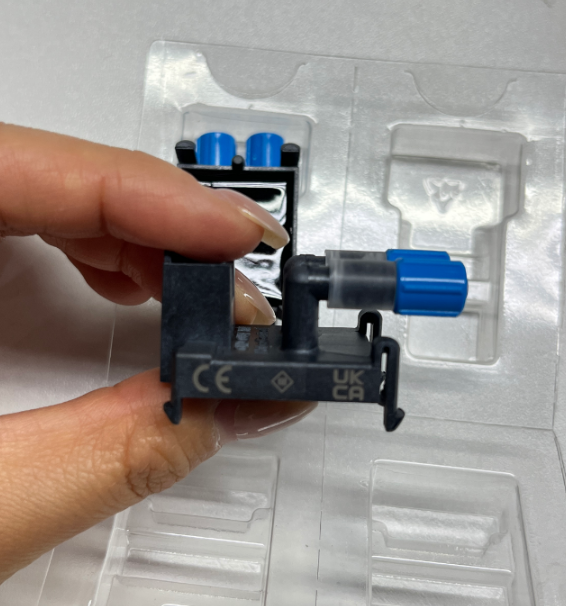

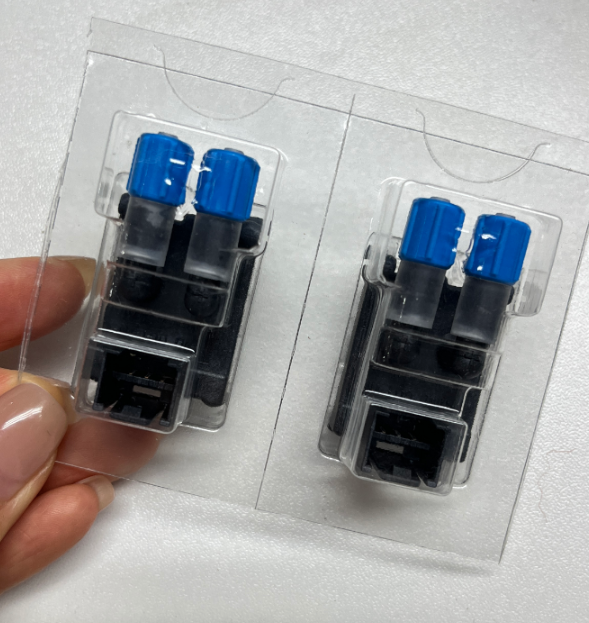

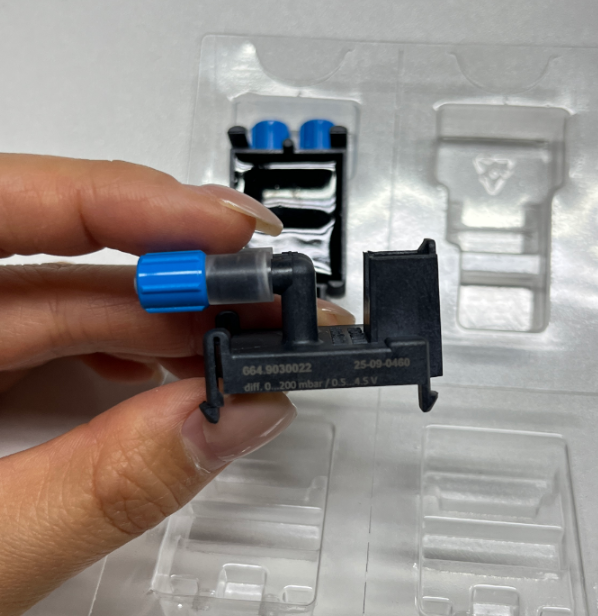

HUBA Differential pressure switch 664 series 664.903002

  • HUBA Differential pressure switch 664 series 664.903002
  • HUBA Differential pressure switch 664 series 664.903002
  • HUBA Differential pressure switch 664 series 664.903002
  • HUBA Differential pressure switch 664 series 664.903002
Plaats van herkomst VS
Merknaam HUBA
Certificering CE
Modelnummer 664.903002
Min. bestelaantal 1
Prijs US$125/PC
Verpakking Details Karton
Levertijd 1 weken
Betalingscondities L/C, D/A, D/P, T/T, Western Union
Levering vermogen 500 stuks
Productdetails
Markeren

HUBA differential pressure switch 664 series

,

Differential pressure gauge with warranty

,

664.903002 pressure switch industrial
Laat een bericht achter
Productomschrijving
Product feature
Pressure measuring range
-5 ... 5 mbar (Relative and difference); 0 ... 2000 mbar (Relative and difference); 0 ... 2000 mbar (Absolute); 800 ... 1200 mbar (Barometric sensor)
Response time
<2 ms
Pressure connection
Hose nozzle (Ø 4.8 mm); Plastic screw connection (Ø 3.9 mm / M6x0.75)
Sensor weight
1.5 g (additional)
Field of application
Media
Air; neutral gas
Medium temperature
-40 ... 85 °C
Permissible overload on one side
10 x FS; 3 x FS
Bursting pressure
15 x FS; 5 x FS
Ambient condition
Ambient temperature
-40 ... 85 °C
Storage temperature
-40 ... 100 °C
Material
Housing
LCP
Substrate
Ceramic Al2O3 (96 %)
Measuring element
Silicon
Adhesives
Silicone, epoxy
plastic screw fittings
PC
