Original New Fluke 8558A 8.5 Digit Multimeter

  • Original New Fluke 8558A 8.5 Digit Multimeter
  • Original New Fluke 8558A 8.5 Digit Multimeter
  • Original New Fluke 8558A 8.5 Digit Multimeter
  • Original New Fluke 8558A 8.5 Digit Multimeter
Plaats van herkomst VS
Merknaam Fluke
Certificering CCC,CE
Modelnummer 8558A
Min. bestelaantal 1
Prijs USD$13320/PC
Verpakking Details Origineel Nieuw
Levertijd 3 dagen
Betalingscondities L/C, D/A, D/P, T/T, Western Union, MoneyGram
Levering vermogen 10
Productdetails
Gelijkstroomspanning 100 mV ¥ 1000 V AC-spanning 10 mV ¥ 1000 V, 1 Hz ¥ 10 MHz
Weerstand, LoI, HV 1 Ω - 10 GΩ Gelijkstroom 10 uA 2 A
wisselstroom 10 uA 2A, 1 Hz tot 100 kHz Frequentie 1 Hz tot 10 MHz, 1 Hz tot 100 kHz, 10 Hz tot 100 MHz
Geheugen 15 Miljoen
Laat een bericht achter
Productomschrijving

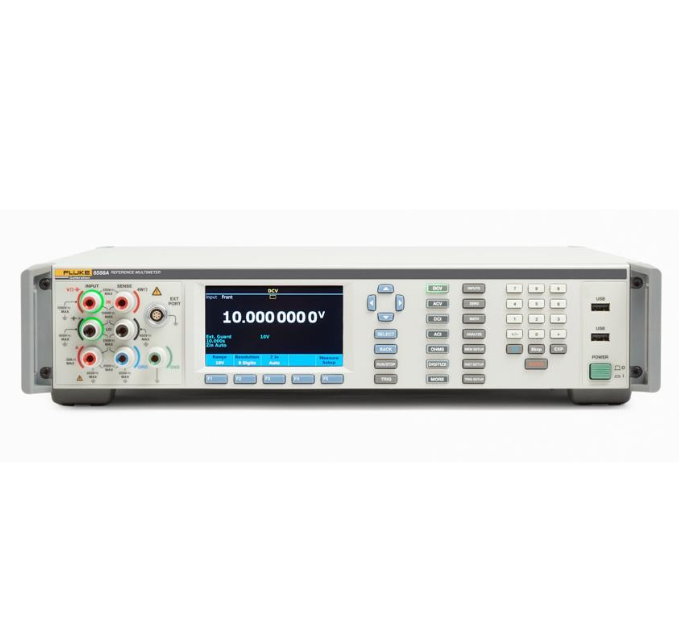

Fluke 8558A 8.5 Digit Multimeter

Key Features

  • 5 mega-samples-per-second high resolution digitizing, providing exceptional speed and accuracy.
  • Intuitive user interface on a color display for easy data viewing in various formats including trend plots, waveforms, FFT, histogram and statistics.
  • Direct digitizing capability with a minimum of 100,000 readings per second at 4.5 digits across GPIB, USBTMC, or Ethernet.
  • Onboard data memory that can hold up to 15 million readings.
  • Programmable front/rear electronic switch for immediate ratio results through a single remote command, and several USB ports for quick and easy data download to a flash drive.

Original New Fluke 8558A 8.5 Digit Multimeter 0

Accurate data, delivered amazingly fast



Shorter test time on the 8588A/8558A high-speed digital platform enables you to increase throughput, improve yield and realize a greater return on your investment. The 8588A/8558A digitizes to memory at 200 nanoseconds per reading and delivers 4.5 digit data to a PC via USB, Ethernet and GPIB at 100,000 readings per second. Fast, high resolution data capture gives you the quantity and quality of information you need to make timely, correct decisions affecting system throughput and efficiency.

  • 0 ns to 100 s aperture setting allows industry’s widest flexibility to control data capture window
  • Reading speed: 1 reading /s @ 8.5 digits to 100,000 reading /s @ 4.5 digits
  • Data transfer from memory to PC: up to 500,000 readings /s in binary format through USB, up to 200,000 through Ethernet and GPIB
